MP-260E Metallographic Sample Grinding Polishing Machine (touch screen version)

Short Description:

The grinding and polishing machine is a double disk desktop machine, which is suitable for pregrinding, grinding and polishing of metallographic samples. The machine is regulated by frequency converter, which can directly obtain the speed between 50-1200 RPM and 150/300/450/600/900/1200 rpm six-level constant speed, so that the machine has a wider application. It is an essential equipment for users to make metallographic samples. The machine has a cooling device, which can be used to cool the sample during pregrinding, in order to prevent the damage of the metallographic structure of the sample due to overheating. This machine is easy to use, safe and reliable, is the ideal sample making equipment for factories, scientific research institutions and laboratories of colleges and universities.


Product Detail

Product Tags

Features and Application

1. Equipped with double discs and double touch screen,can be operated by two persons simultaneously.
2. Two working conditions through the touch screen. 50-1200 rpm(step-less speed changing) Or 150/300/450/600/900/1200 rpm(six-level constant speed)
3. Equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure.
4. Applicable to rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing.

Technical Parameter

Diameter of working disc 200mm or 250mm(customized)
Rotating Speed of working disc 50-1200 rpm(step-less speed changing)Or 150/300/450/600/900/1200 rpm(six-level constant speed)
Working Voltage 220V/50Hz
Diameter of Abrasive Paper φ200mm (250mm can be customized)
Motor 500W
Dimension 700*600*278mm
Weight 55KG

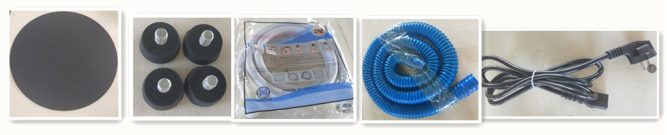

Configuration

Main Machine 1 PC Inlet Pipe 1 PC
Grinding Disc 1 PC Outlet Pipe 1 PC
Polishing Disc 1 PC Foundation Screw 4 PCS
Abrasive Paper 200mm  2 PCS Power Cable 1 PC
Polishing Cloth (velvet)200mm  2 PCS
