ZDQ-500 Large Automatic Metallographic Sample Cutting Machine (customized model)

Short Description:

Manual/automatic operation can be switched at will.Three-axis simultaneous-motioned ; 10” industrial touch screen;
Diameter of abrasive wheel: Ø500xØ32x5mm
Cutting feed speed:3mm/min, 5mm/min, 8mm/min, 12mm/min (customer can set speed according to their need)


Product Detail

Product Tags

Description

*Model ZDQ-500 is a large automatic metallographic cutting machine which adopts Mitsubishi/ Simens PLC controlling system and servo motor.
*It can be automatically controlled in X, Y, Z direction very precisely and cutting feed can be changed according to the material hardness thus can achieve fast and precise cutting effect;
*It adopts frequency control to adjust the cutting speed; very reliable and controllable;
*It adopts touch screen in relation to human-computer interaction; on the touch screen shows various cutting data.
*It is applicable to cut various metal and non-metal materials, especially for those large work pieces so as to observe the structure . With automatic operation, low noise, easy and safe operation, it is an important equipment for sample preparation in laboratories and factories.
* It can be customized according to customer’s cutting specimen requirements, such as working table size, XYZ travel, PLC, cutting speed etc.

Main Interface

*Model ZDQ-500 is a large automatic metallographic cutting machine which adopts Mitsubishi/ Simens PLC controlling system and servo motor.
*It can be automatically controlled in X, Y, Z direction very precisely and cutting feed can be changed according to the material hardness thus can achieve fast and precise cutting effect;
*It adopts frequency control to adjust the cutting speed; very reliable and controllable;
*It adopts touch screen in relation to human-computer interaction; on the touch screen shows various cutting data.
*It is applicable to cut various metal and non-metal materials, especially for those large work pieces so as to observe the structure . With automatic operation, low noise, easy and safe operation, it is an important equipment for sample preparation in laboratories and factories.
* It can be customized according to customer’s cutting specimen requirements, such as working table size, XYZ travel, PLC, cutting speed etc.

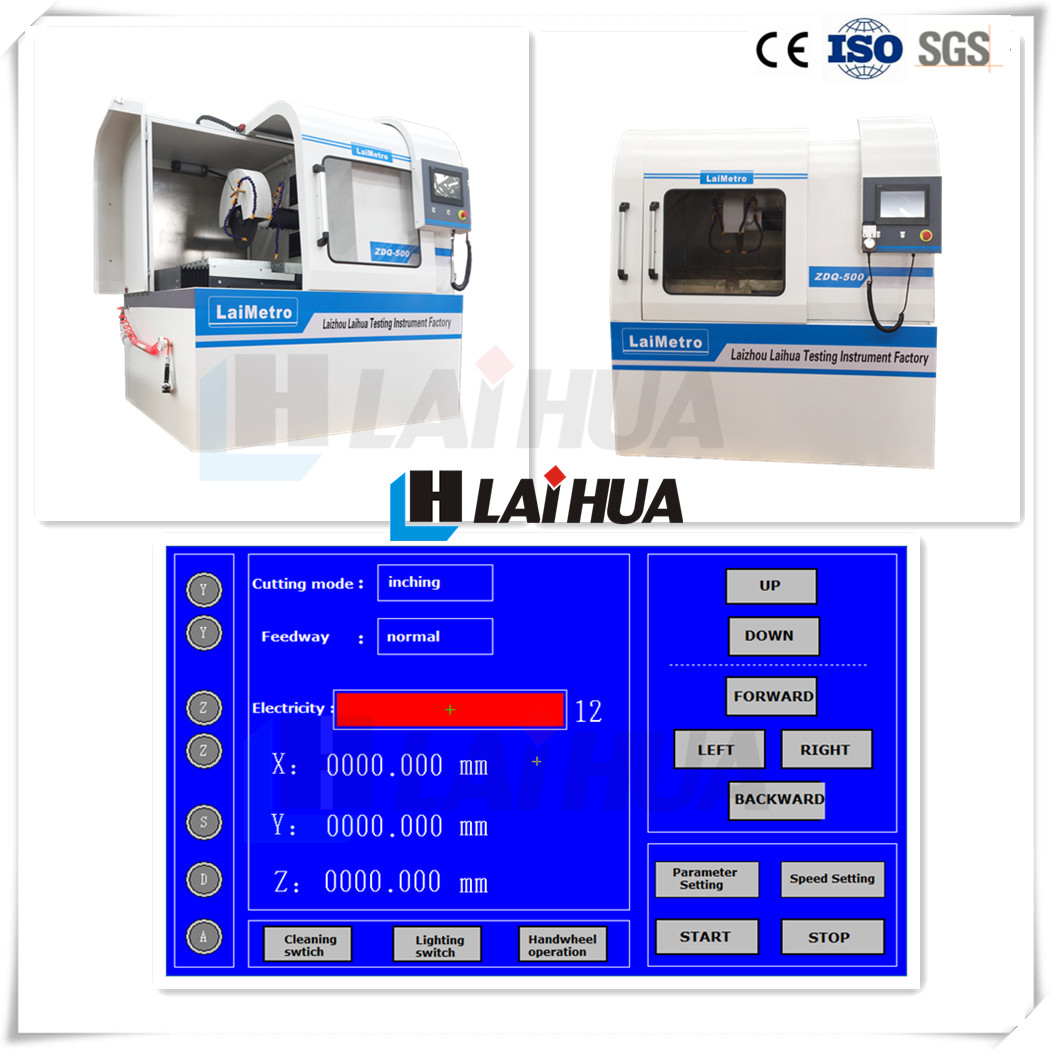

Main Interface

5

Main Technical Parameters

Manual/automatic operation can be switched at will.Three-axis simultaneous-motioned ; 10” industrial touch screen;
Diameter of abrasive wheel Ø500xØ32x5mm
Cutting feed speed 3mm/min, 5mm/min, 8mm/min, 12mm/min (customer can set speed according to their need)
Working table size 600*800mm(X*Y)
Distance of travel Y--750mm, Z--290mm, X--150mm
Max cutting diameter 170mm
Volume of cooling water tank 250L;
variable frequency motor 11KW,  speed:100-3000r/min
Dimension 1750x1650x1900mm (L*W*H)
Machine type Floor-type
Weight about 2500Kg
Power supply 380V/50Hz
