HRS-45S Touch Screen Superficial Rockwell Hardness Tester

Short Description:

The Digital Superficial Rockwell Hardness Tester is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the mechanic and electric features.

Send email to us

Product Detail

Product Tags

Features

Its main function is as follows:

* Selection of Superficial Rockwell Hardness Scales;

* Hardness values exchange among various Hardness Scales;

* Output-Printing of hardness testing results;

* The RS-232 Hyper Terminal Setting is for the Functional Expansion by the client.

Application range

Suitable for surface quenched steel, surface heat treating and chemical treating materials, copper alloy, aluminum alloy, sheet, zinc layers, chrome layers, tin layers,bearing steel and cold and hard casting etc.

Technical Parameter

Measuring Range: 70-91HR15N, 42-80HR30N, 20-77HR45N, 73-93HR15T, 43-82HR30T, 12-72HR45T

Initial Test Force: 3Kgf (29.42N)

Total Test Force: 147.1, 294.2，441.3N （15, 30, 45kgf）

Max. height of test piece: 185mm

Depth of throat: 165mm

Type of indenter: Diamond cone indenter, φ1.588mm ball indenter

Loading method: Automatic (Loading/Dwell/Unloading)

Unit for display: 0.1HR

Hardness Display: LCD screen

Measuring scale：HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Conversion scale：HV, HK, HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW

Time-delayed control: 2-60 seconds, adjustable

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 520 x 200 x 700mm

Weight: approx. 85kg

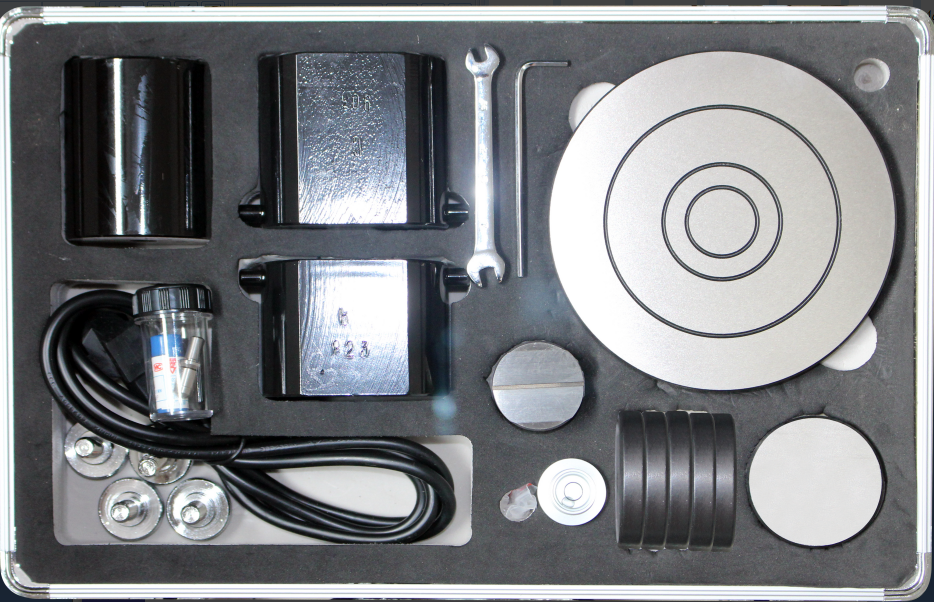

Packing List

Main Machine	1Set	Printer	1 PC
Diamond Cone Indenter	1 PC	Power Cable	1 PC
ф1.588mm ball Indenter	1 PC	Spanner	1 PC
Anvil (Big, Middle, "V"-Shaped)	TOTAL 3 PCS	Packing list	1 copy
Standard Superficial Rockwell Hardness Block	2 PCS	Certificate	1 copy
