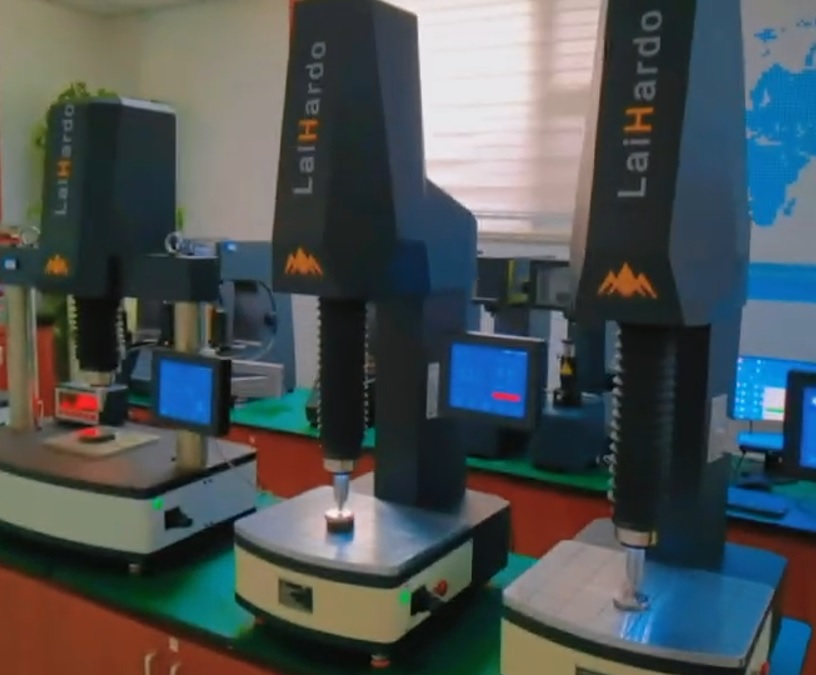

Automatic Full Scale Digital Rockwell Hardness Tester

Short Description:

Test force closed-loop control;

Automatic tracking and testing, no test error caused by deformation of frame and workpiece;

Measuring head can move upwards or downwards and automatically clamp the workpiece, no need to apply prepminary test force by hand;

High accuracy optical grating displacement measuring system;

Large test table, which is suitable for testing of abnormal shape and heavy workpieces; The indenter is arbitrarily far from the sample position, just one key operation, you can get the test.

Large LCD display, menu operation, complete functions (data processing, hardness conversion between different hardness scales etc.);

Bluetooth data interface ; Equipped with printer

Equipped with a special port can be connected with robots or other automatic equipment.

Precision conforms to GB/T 230.2, ISO 6508-2 and ASTM E18

Send email to us

Product Detail

Product Tags

Application

* Suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials.
Rockwell: Testing of rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials; Suitable for hardening, quenching and tempering heattreatment materials” rockwell hardness measurement; It is especially suitable for precise testing of horizontal plane. V-type anvil can be used for precise testing of cylinder.

Surface Rockwell: Testing of ferrous metals, alloy steel, hard alloy and metal surface treatment (carburizing, nitriding, electroplating).

Plastic Rockwell hardness: rockwell hardness of plastics, composite materials and various friction materials, soft metals and non-metallic soft materials.
* Widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
* Especially suitable for the precise measurement of parallel surface and steady and reliable for measurement of curved surface.

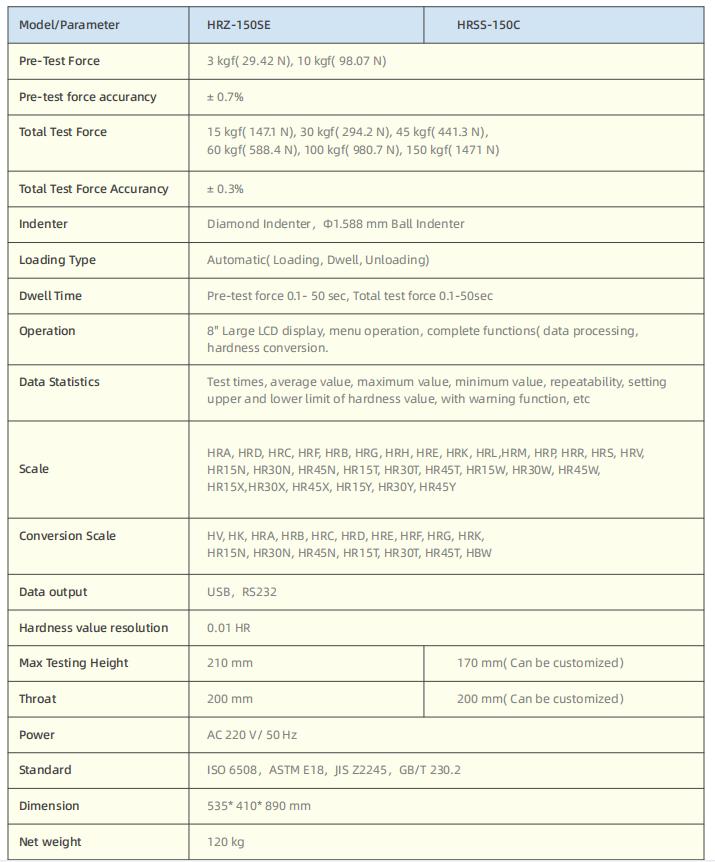

Main technical parameter

pro2

Main Accessories

Main unit	1 set	Hardness Block HRA	1 Pc
Small flat anvil	1 Pc	Hardness Block HRC	3 Pcs
V-notch anvil	1 Pc	Hardness Block HRB	1 Pc
Diamond cone penetrator	1 Pc	Micro printer	1 pc
Steel ball penetrator φ1.588mm	1 Pc	Fuse: 2A	2 Pcs
Superficial Rockwell Hardness Blocks	2 Pcs	Anti-dust cover	1 Pc
Spanner	1 Pc	Horizontal Regulating Screw	4 Pcs
Operation manual	1 Pc
