MR-2000/2000B Inverted metallurgical microscope

Short Description:

This microscope is a trinocular inverted metallographic microscope, which adopts excellent infinitely distant optical system and modular functional design concept, and has the functions of polarization, bright and dark field observation. The compact and stable body with high rigidity fully realizes the vibration proof requirement of microscope operation. Meet the ergonomic requirements of the ideal design, more convenient and comfortable operation, wider space. Suitable for microscopic observation of metallographic structure and surface morphology, it is an ideal instrument for the study of metallogy, mineralogy and precision engineering.

Send email to us

Product Detail

Product Tags

Features and Applications

1. Equipped with excellent UIS optical system and modularization function design.Users can update system conveniently to achieve polarization and dark field observation.
2. Compact and steady main frame body to resist shock and vibration
3. Ideal ergonomic design, easy operation and wider space.
4. Suitable for research in metallography, mineralogy, precision engineering, etc. It’s an ideal optical instrument for micro observation in metallographic structure and surface morphology.

Fearures

Technical specifications (standard)
Eyepiece	10X wide field plan eyepiece and field of view number is Φ22mm, the eyepiece interface is Ф30mm
Infinity plan achromatic objectives	MR-2000 （Equipped bright field objective）		PL L10X/0.25 working distance：20.2 mm
			PL L20X/0.40 working distance：8.80 mm
			PL L50X/0.70 working distance：3.68 mm
			PL L100X/0.85（dry） working distance：0.40 mm
	MR-2000B（Equipped with dark / bright field objective）		PL L5X/0.12 working distance：9.70 mm
			PL L10X/0.25 working distance：9.30 mm
			PL L20X/0.40 working distance：7.23mm
			PL L50X/0.70 working distance：2.50 mm
Eyepiece tube	Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm
Focusing system	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.

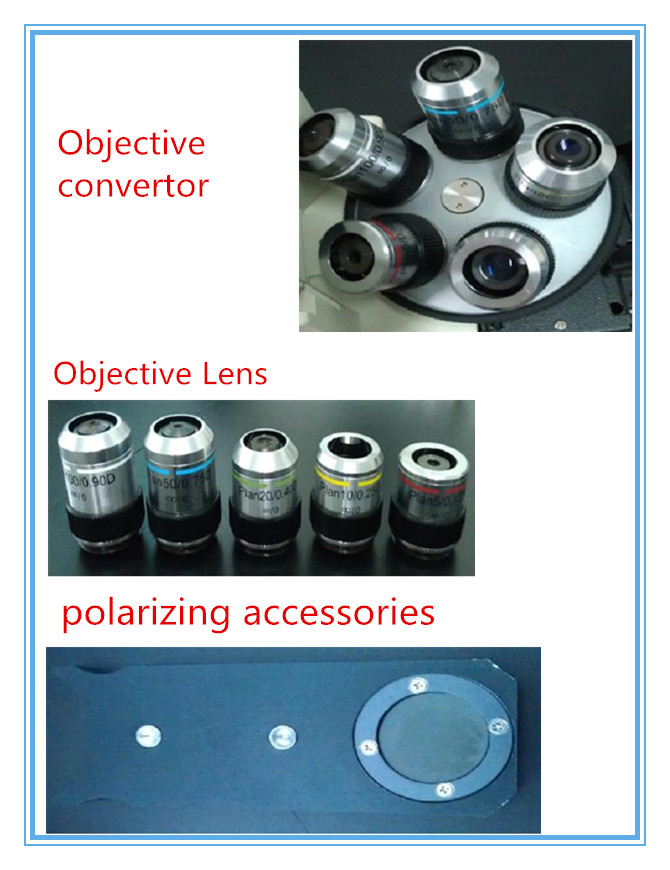

Nosepiece	Quintuple (Backward ball bearing inner locating)
Stage	Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
	Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
Illumination system	MR-2000	6V30W halogen and brightness enable control.
	MR-2000B	12V50W halogen and brightness enable control.
	Integrated field diaphragm , aperture diaphragm and puller type polarizer.
	Equipped with frosted glass and yellow ,green and blue filters
