4XC Metallographic Trinocular Microscope

Short Description:

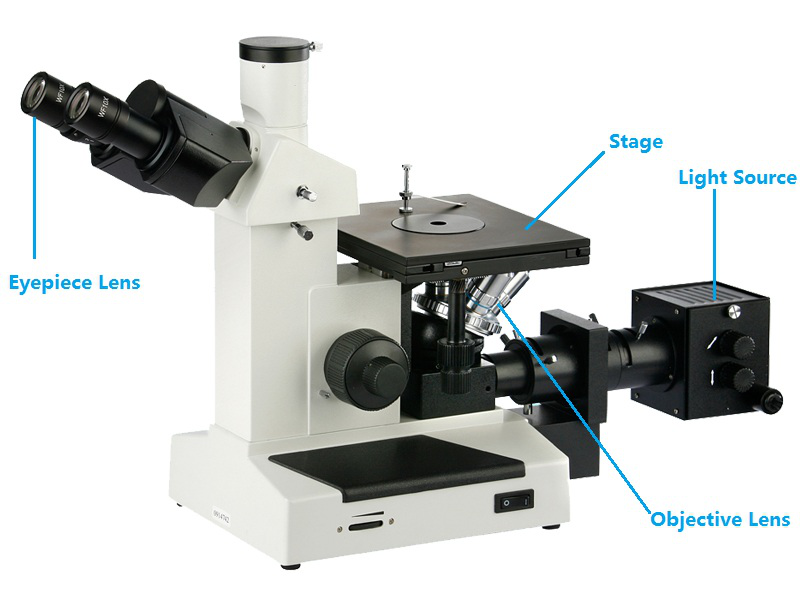

This microscope is a trinocular inverted metallographic microscope, equipped with excellent telephoto anomalous field achromatic objective and large-field flat field eyepiece. The lighting system adopts Kohler lighting mode, and the field of view lighting is uniform. Compact structure, convenient and comfortable operation. Suitable for microscopic observation of metallographic structure and surface morphology, it is an ideal instrument for the study of metallogy, mineralogy and precision engineering.

Send email to us

Product Detail

Product Tags

Features and Applications

1. Mainly used for metal identification and analysis of the internal structure of organizations.
2. It is the important device which can be used to study the metallographic structure of metal, and it is also the key instrument to verify the product quality in industrial application.

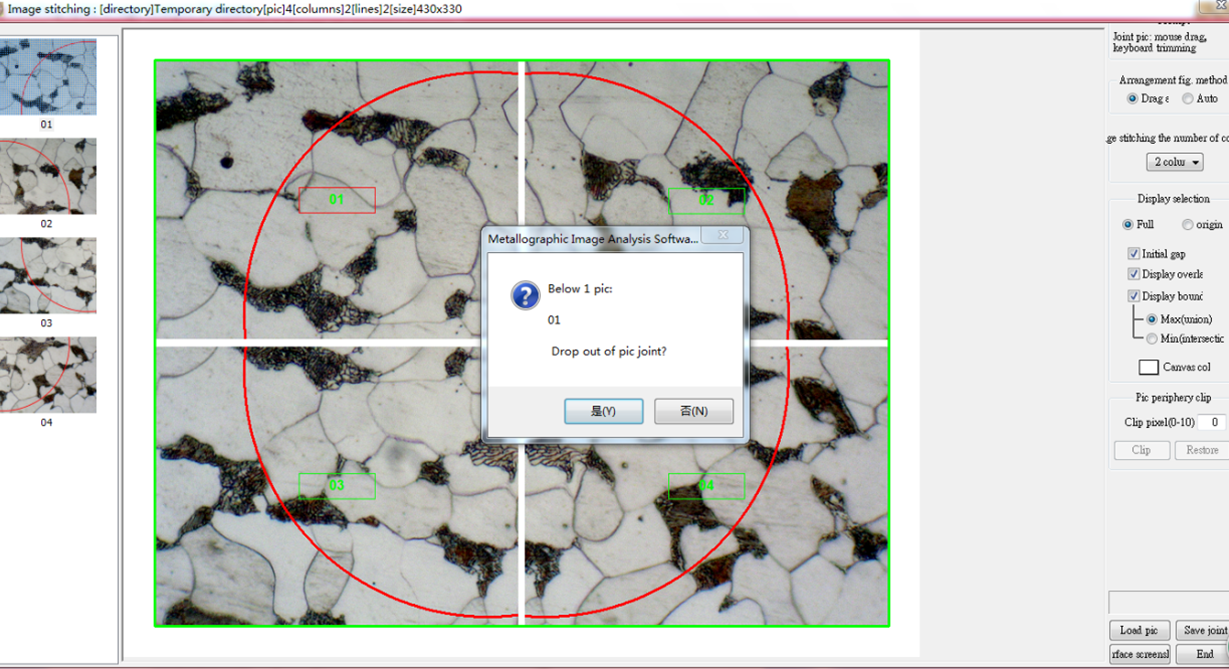

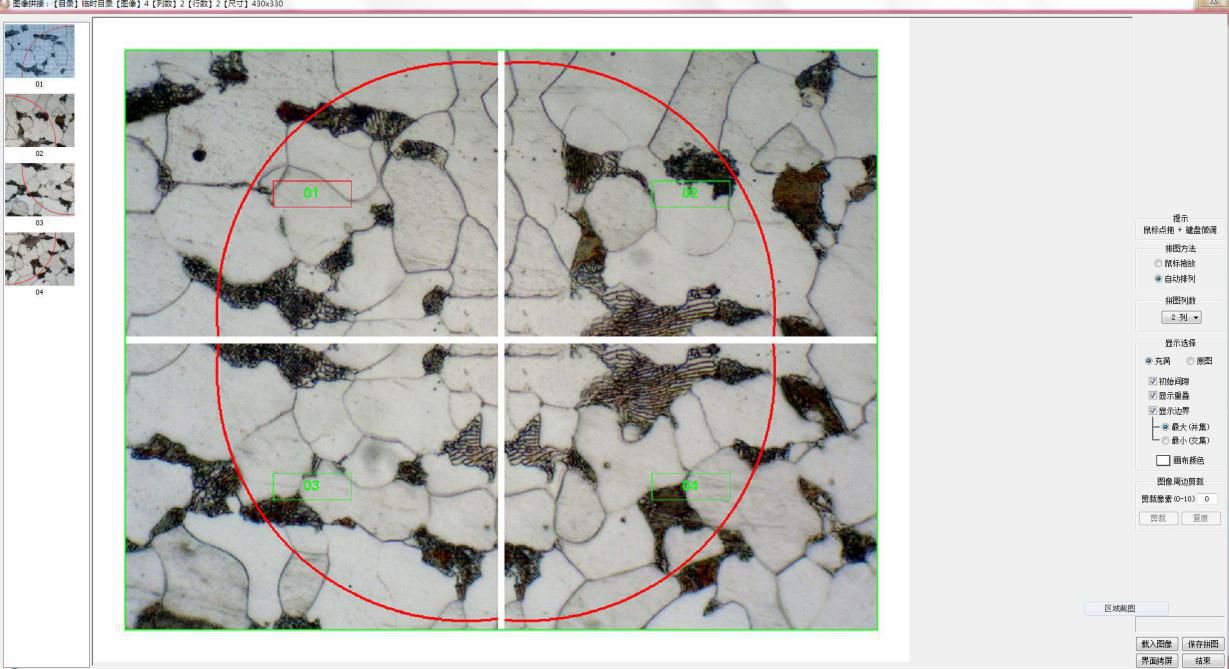

3. This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.

The main technical parameters

1.Achromatic Objective:
Magnification	10X	20X	40X	100X(Oil)
Numerical	0.25N.A	0.40N.A	0.65N.A	1.25N.A
Working distance	8.9mm	0.76mm	0.69mm	0.44 mm
2. Plan Eyepiece:
10X (Diameter field Ø 22mm)
12.5X (Diameter field Ø 15mm) (pick out part)
3. Dividing Eyepiece: 10X (Diameter field 20mm) (0.1mm/div.)
4. Moving stage: Working stage size: 200mm×152mm
Moving range: 15mm×15mm
5. Coarse and Fine focusing adjusting device:
Coaxial limited position, Fine focusing scale value: 0.002mm
6. Magnification:
Objective	10X	20X	40X	100X
Eyepiece
10X	100X	200X	400X	1000X
12.5X	125X	250X	600X	1250X
7. Photo Magnification
Objective	10X	20X	40X	100X
Eyepiece
4X	40X	80X	160X	400X
4X	100X	200X	400X	1000X
And additional
2.5X-10X
