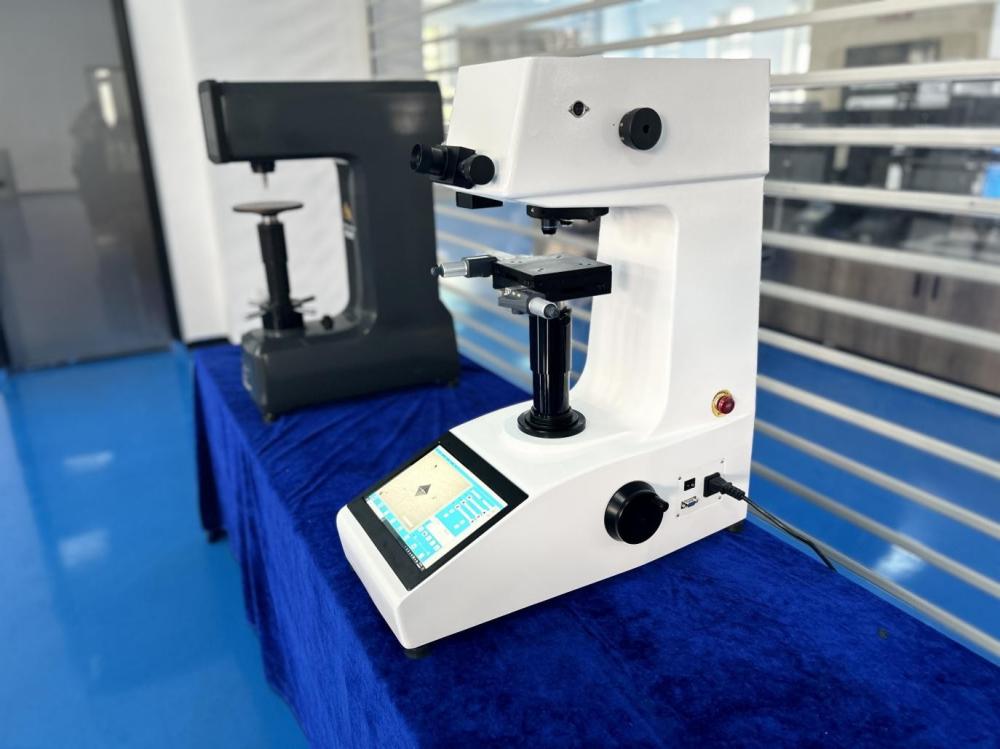

HV-1000PC Integrated Micro Vickers Hardness Tester
Features:
This instrument is a new generation of Vickers hardness tester, combining an industrial tablet PC with the hardness tester. All necessary test parameters can be selected on the tablet PC, which features convenient and quick touchscreen operation with a clear and intuitive display. The built-in CCD image acquisition system can directly display dynamic indentation images on the tablet PC, lock the image, and automatically measure the Vickers hardness value. It boasts high measurement accuracy, stable performance, and avoids human error. The hardness tester is fully functional and represents an advanced level in China.
● The hardness tester and computer are integrated into one unit, equipped with a Windows operating system, and have all the functions of a computer. It can also be connected to external output devices such as monitors and printers.

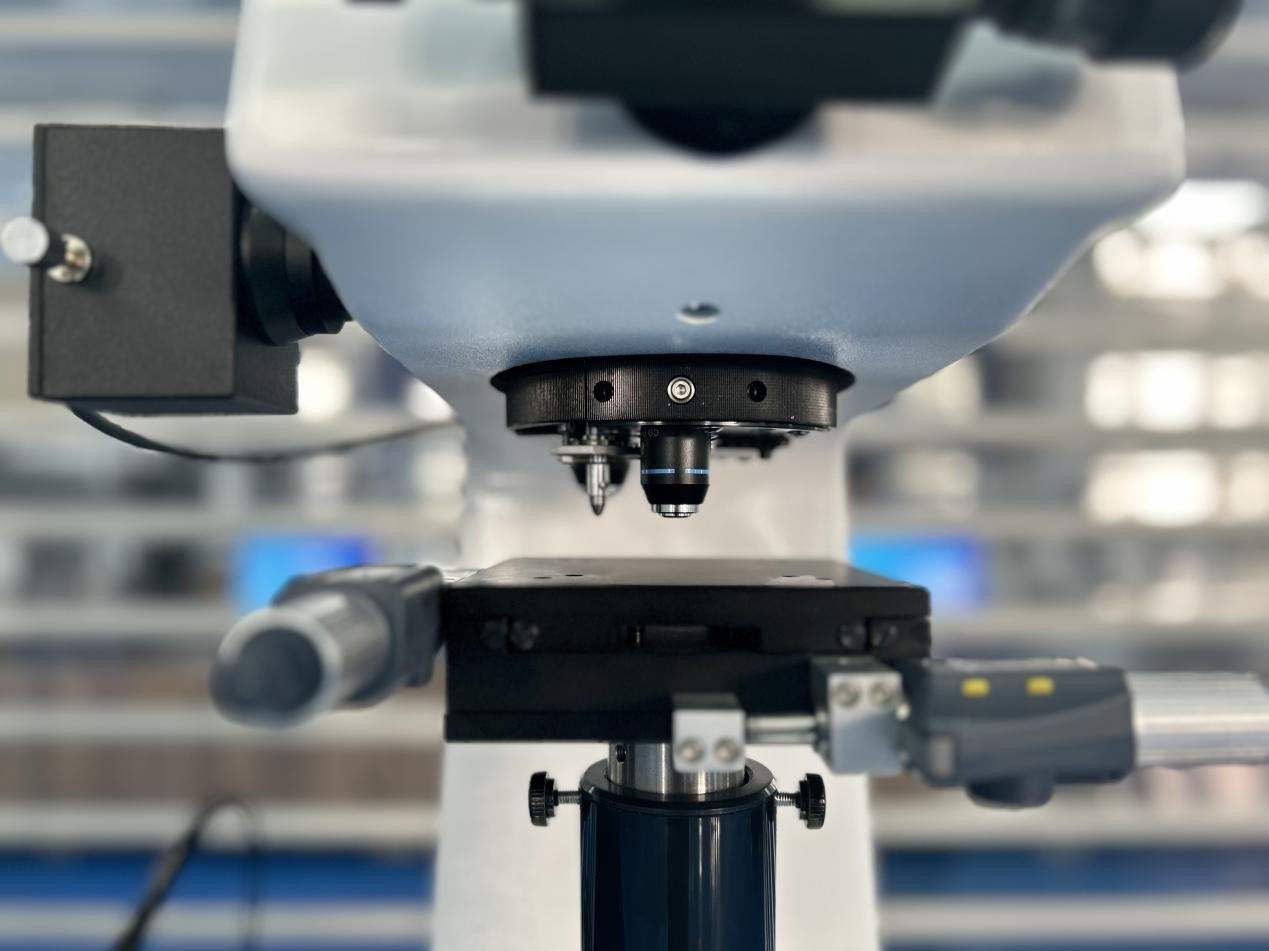

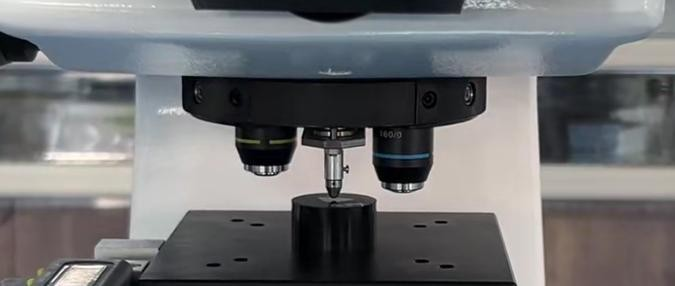

● It has two objectives for measurement, and the objectives and pressure head are automatically identified and switched.

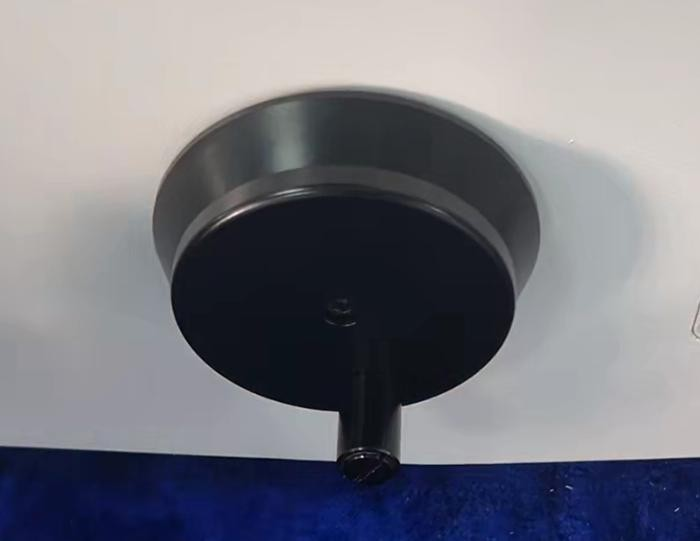

● The lifting screw adopts a worm gear structure, ensuring smooth transmission.
● Digital display cross-shaped test stand for more accurate positioning and measurement.
● The test force loading/holding/unloading process is completed automatically.

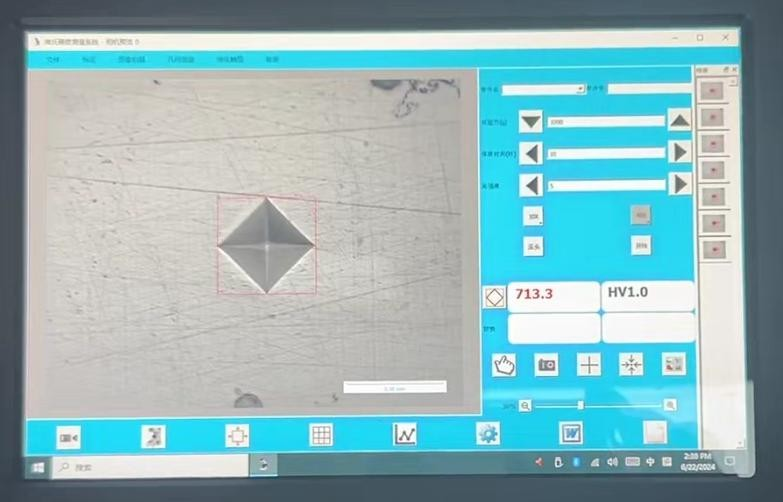

● Built-in CCD image automatic measurement system, the indentation display is clear and intuitive, and the hardness value is automatically measured.

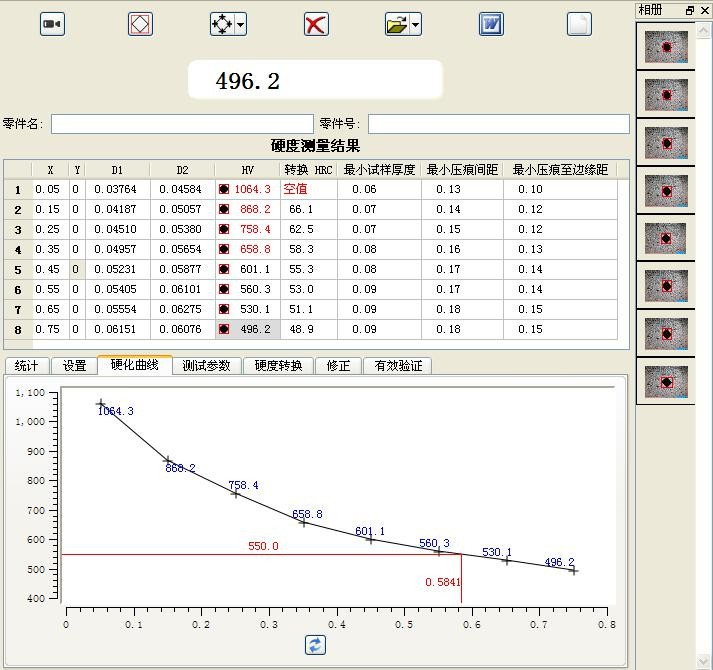

● Features hardness scale conversion, allowing conversion between different hardness scales. Automatically records measurement data, generates hardness-depth curves, and saves them as a Word document.
Hardness scale: 0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Test mode: HV/HK
Test force application method: Automatic (loading/holding/unloading) Objective lens and pressure head switching: Automatic switching Camera resolution: 1.3MP
Conversion scales: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Hardness reading: Touchscreen displays indentation, automatic reading
Data output: Can generate WORD or EXCEL reports and produce line graphs. Eyepiece: 10X
Objective lenses: 10×, 40× Holding time: 0~60s
Light source: Halogen lamp

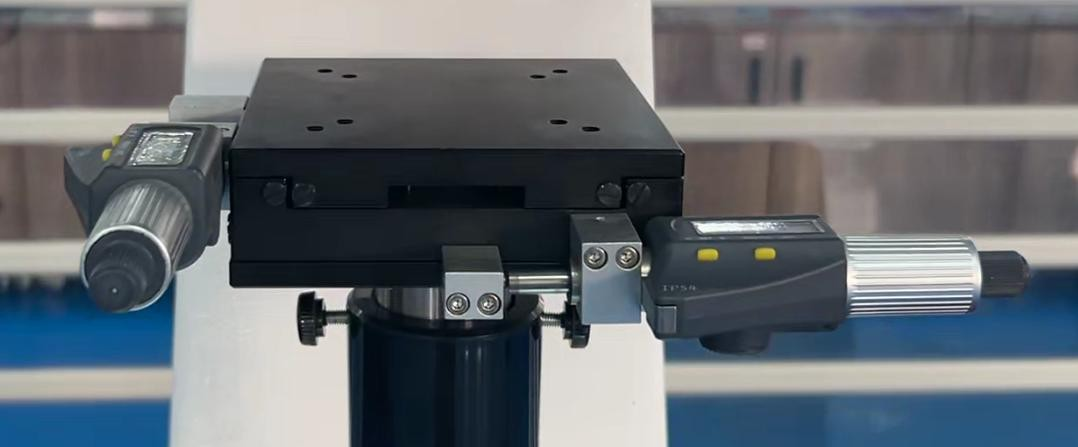

Digital display XY test stand: Dimensions: 120×120mm; Travel: 25×25mm; Resolution: 0.001mm
Maximum height of the specimen: 170mm
Distance from the center of the press head to the machine wall: 130mm Power supply: AC220V, 50Hz
Standards to be followed: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 External dimensions: 560×335×675mm, outer box dimensions: 650×380 ×960mm Weight: Net weight 48kg, Gross weight 62kg
Product Configuration:
| name | quantity | name | quantity |
| instrument main unit | 1 unit | 10× eyepiece | 1 |
| 10×, 40 × objectives | 1 of
each |
Diamond Vickers indenter | 1 |
| Digital display cross test stand | 1 | power cord | 1 piece |
| Standard hardness block 700~800 HV1 | 1 piece | Standard hardness block 400~500 HV 1 | 1 piece |
| Leveling screw | 4 | Level | 1 |
| Fuse 1A | 2 | 12V halogen lamp, 15~20W | 1 |
| dust cover | 1 | Manual | 1 copy |
